Tank dipping tapes

Accuracy according to EC Standard
Standard type in accuracy class II,
+/- a + bL (a = 0,3 mm; b = 0,2 mm; L = length in m)
Accuracy class l, +/- a + bL (a = 0,1 mm; b = 0,1 mm; L
= length in m) at extra cost.

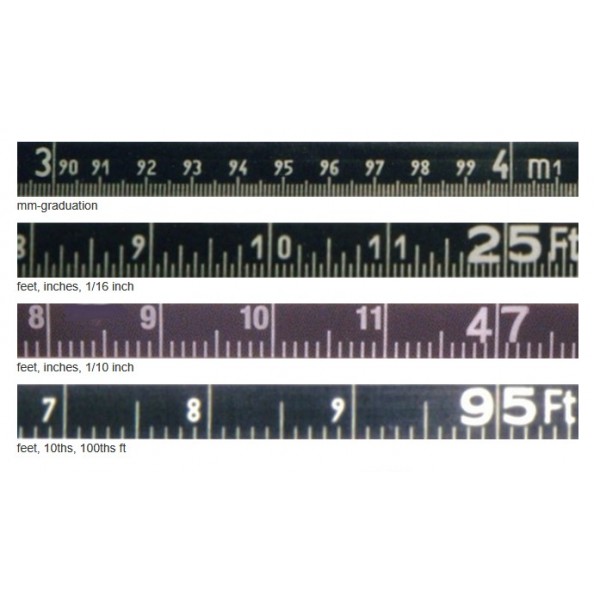

Graduation:
raised markings and figures in bright natural steel colour
on a dark etched background. Graduation on one or
both sides.
Technical data:
hardened tape steel width: 13,0 mm
thickness: 0,2 mm
Tension:
the tension force of the tape is in accordance with the
weight of the dip weight (indicate when ordering for
which dip weight the tapes should be used).

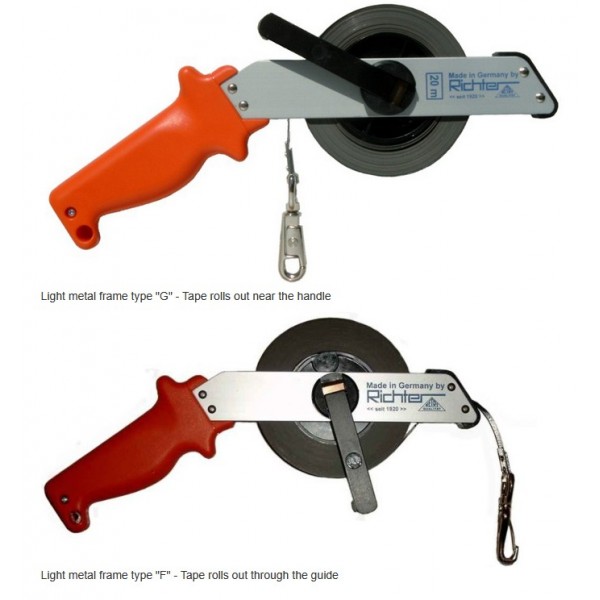

Light metal frame:
strong frame of anodised light metal with oblique handle
of plastic, strong foldable winding arm of anodised light
metal protects the tape from unwinding when not in use,

Tape roll out "G": the measuring tape rolls straight
down near the handle - easy to hold, no tension to the
hand ankle

Tape roll out "F": the measuring tape rolls out through
the guide at the front of the frame
